Product Description

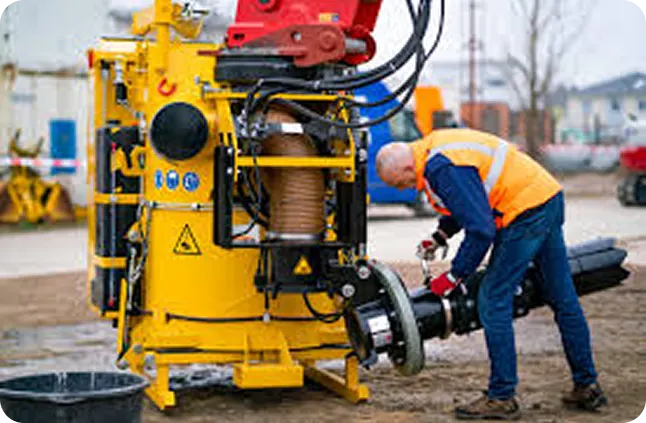

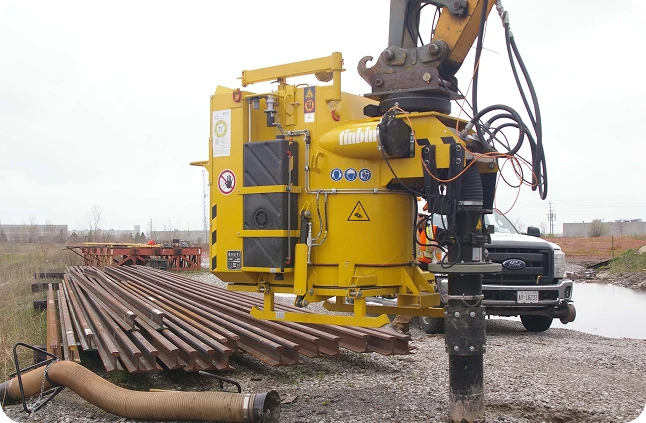

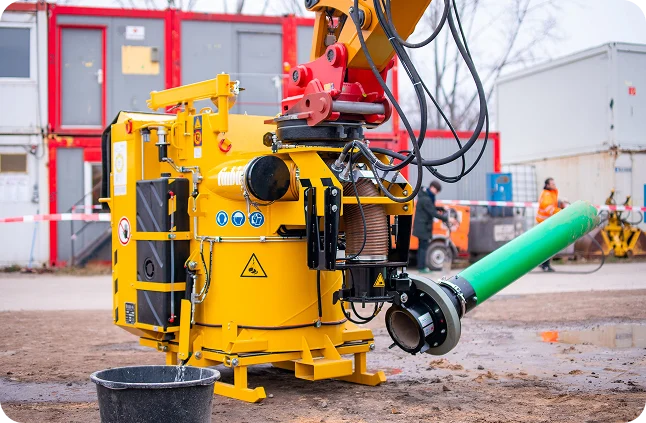

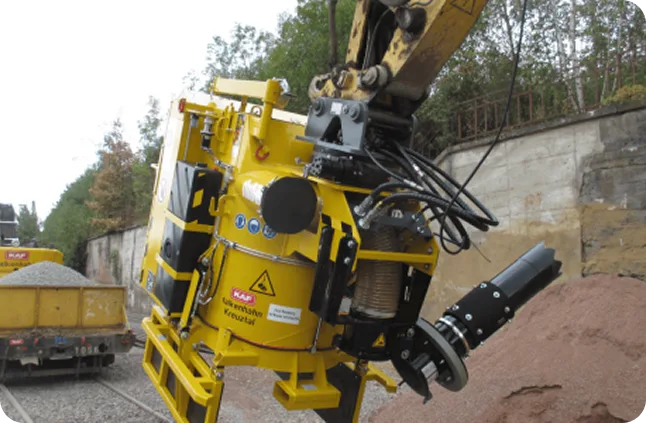

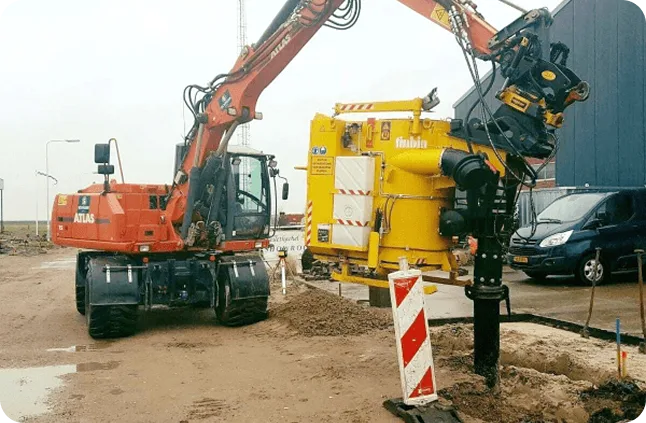

The TinBin TC2 is a hydraulically driven, pneumatically operated dry vacuum excavator attachment that transforms standard excavators into powerful suction units. It efficiently removes soil, gravel, and debris without creating slurry, making it ideal for utility work, rail maintenance, and precision excavation. With a 0.75 cubic meter storage tank and a suction depth of up to 3.5 meters, it enhances efficiency, reduces costs, and minimizes environmental impact.

Technical Specifications

This Product consists of multiple models, here is a range of the key specifications for these models. Want more details? Download the brochure or contact-Toll Free -8899889923

TinBin vacuum suction
TinBin vacuum suction

TinBin Vacuum suction

Dimensions (LxBxH) m

95"x57"x87", 2.41x1.45x2.20

With quick coupling module m

104.5"x57"x87", 2.63x1.45x2.20

Dead weight kg

1300 kg

Suction depth m

3.50

Suction tube diameter mm

250

Volume of storage tank cubic yard

1

Excavator weight class t

>= 16 t

Pump flow rate gal per min

30-33

Operating Pressure bar

Max. 280

Hydraulic motor power demand kW

Min 75

Add Model

Add Model

Add Model

Used in following Industries

Municipal work and utilities

Municipal works

Railways

Railways

Our Services Include

Genuine Spares

Operator Training

2 years of Warranty

Inspection & Evaluation
